SMD four-phase bridge
- Product Details
SMD Package Description
four-phase bridge is a surface mount device with a compact package. This series of products is suitable for navigation, handheld large S and other applications. RF performance such as relatively good isolation, relatively good return loss, relatively low insertion loss, and good amplitude balance and phase balance can meet the mass use of the product.
characteristics
◆ Patch ◆ Consistency is better
◆insertion loss is relatively low ◆ The temperature expansion coefficient is compatible with commonly used materials (FR-4, G-10, RF-35, R04350, etc.)
◆ The phase balance is relatively stable ◆ The metal surface sinks gold to prevent oxidation and scratches
◆ better isolation comparison ◆ RoHS Compliant
◆ Small standing wave ratio ◆ tape packaging shipment
application
◆ miniaturized helical navigation antenna
◆ miniaturized large s handset antenna
Model description of
*** **** * **
Coupling value of center frequency (MHz) dimension (mm) of compact one-four bridge
TQF 0500=400-600 A=14.22*8.89 03=3dB
0900=800-1000 B =25.4*12.7 <strong>
C=34.0*17.0
E=14.22*5.08
F=5.08*3.18
L=16.51×12.19
M=10.16×5.08
P=6.35×5.08
S=6.0×3.0
T=2.0×1.25
| Models | Power (W) | length x width (mm) | thickness (mm) | standing wave | insertion loss (dB) | amplitude balance (dB) | phase balance degree (°) | isolation (dB) | |

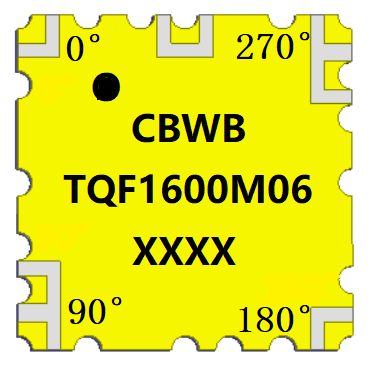

TQF1600M06 | 1500-1700 | 50 | 13x13 | 1.8 | 1.2 | 0.8 | ± 0.6 | ± 3 | 12 |
