SMD directional coupler

_¥0_.00

directional coupler

Product Details

SMD encapsulation Description

the directional coupler is a compact chip-type device. This product is applicable to areas including AMPS, DCS, PCS, UMTs and 3G. Good isolation, good directionality, relatively low insertion loss and other electrical properties make it meet the requirements of signal sampling and front-end amplifier applications.

Characteristics

◆ patchable◆ good consistency

◆ The insertion loss is relatively small ◆ The temperature expansion coefficient is compatible with commonly used materials (FR-4, G-10, RF-35, R04350, etc.)

◆ The phase balance is relatively stable ◆ The metal surface sinks gold to prevent oxidation and scratching

◆ Good isolation ◆ RoHS Compliant

◆ Small standing wave ratio ◆ Tape packaging for shipment

Model description

*** **** * **

compact single directional coupler center frequency (MHz) size (mm) coupling value

TDC 0900=800-1000 A=14.22*8.89 02=2dB

B =25.4*12.7 05=5dB

E=14.22*5.08 10=10dB

F=5.08*3.18 20=20dB

M=10.16×5.08 30=30dB

P=6.35×5.08

S=6.0×3.0

T=2.0×1.25

Technical parameters of

degree of coefficient of wave (W)1.3

model	frequency range (MHz)	coupling (dB)	directivity (°)	insertion loss (dB)	power of	standing	length x width (mm)	thickness (mm)
TDC0150B20.pdf	100-200	20±1	25	0.1	1.2	200	25.4X12.7	2.5

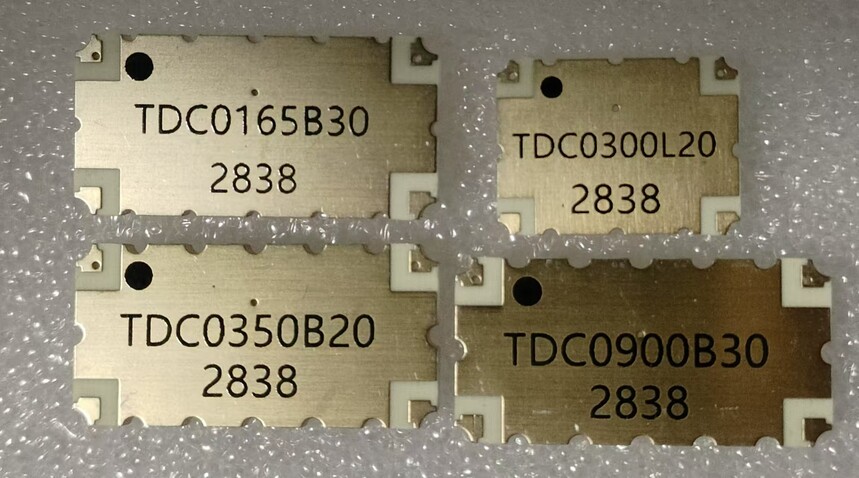

TDC0165B30.pdf	120-210	30±1	23	0.1	1.2	200	25.4X12.7	2.5
TDC0300L20.pdf	180-400	21.1±1	0.1	1.2	200	16.51X12.19	2.5
TDC0350B20.pdf	180-520	20±2	21	0.1	1.2	200	25.4X12.7	2.5
TDC0350B20V1.pdf	100-525	22±4	25	0.1	1.2	200	25.4X12.7	2.5
TDC0350M20.pdf	350-470	19.4±1.0	23	0.1	1.25	100	10.16X5.08	2.0
TDC0450A10.pdf	350-540	10±1.5	18	0.1	1.2	100	14.22X8.89	2.0
TDC0450A15.pdf	350-540	14.2±0.5	20	0.1	1.25	100	14.22X8.89
2.0
TDC0450E20.pdf	350-540	20±1.0	22	0.1	1.1	100	14.22X5.08	2.0
TDC0520M27.pdf	420-610	27±1.2	25	0.05	1.15	100	10.16X5.08	2.0
TDC0700A25.pdf	300-1000	27±2.5	20	0.15	1.15	200	14.22X8.89	2.0
TDC0800A10.pdf	600-1000	10±1.0	18	0.1	1.2	200	14.22X8.89	2.0
TDC0800A20.pdf	600-1000	20±2.0	21	0.1	1.2	200	14.22X8.89	2.0
TDC0850M20.pdf	20.5±1.0	25	1.15	100	10.16X5.08	2.0
TDC0900A10.pdf	800-1000	10±1.0	20	0.1	1.2	200	14.22X8.89	2.0
TDC0900A20.pdf	800-1000	20±1.0	25	0.1	1.2	200	14.22X8.89	2.0
TDC0900A30.pdf	800-1000	30±1.0	25	0.1	1.2		14.22X8.89	2.0
TDC0900B30.pdf	800-1000	30.2±0.5	26	0.1	1.1	355	25.4X12.7	2.5
TDC0900E20.pdf	800-1000	20±1.0	25	0.1	1.1	100	14.22X5.08	2.0
TDC0900E30.pdf	800-1000	30±1.0	25	0.1	1.1	100	14.22X5.08	2.0
TDC0900M30.pdf	800-1000	31±0.6	18	0.1	1.25	100	10.16X5.08	2.0
TDC0900P10.pdf	800-1000	10±0.5	17	0.15	1.1	25	6.35X5.08	2.0
TDC0900P12.pdf	800-1000	12±0.5	20	0.15	1.1	25	6.35X5.08	2.0
TDC0900P15.pdf	800-1000	15.7±0.6	23	0.10	1.20	25	6.35X5.08	2.0
TDC0900P20.pdf	800-1000	20±1.0	25	0.10	1.20	25	6.35X5.08	2.0
TDC0900P30.pdf	700-1000	30±1.0	20	0.10	1.20	225	6.35X5.08	2.3
TDC1100P30.pdf	950-1250	30±1.0	20	0.10	1.20	225	6.35X5.08	2.3
TDC1300P30.pdf	1200-1400	30±1.0	20	0.10	1.20	225	6.35X5.08	2.3
TDC1400P10.pdf	800-1000	10.8±2.2	18	0.25	1.25	25	6.35X5.08	2.0
TDC1500A10.pdf	1000-2000	10±1.5	20	0.1	1.4	200	14.22X8.89	2.0
TDC1500A20.pdf	1000-2000	20±2.0	20	0.1	1.2	200	14.22X8.89	2.0
TDC1500A28.pdf	1000-2000	28±2.0	25	0.1	1.15	200	14.22X8.89	2.0
TDC1500A30.pdf	1000-2000	30±2.0	30	0.1	1.1	200	14.22X8.89	2.0
TDC1600B20.pdf	1250-2300	20±2.0	18	0.1	1.12	300	25.4X12.7	3.3
TDC1700B15.pdf	680-2700	15±1.5	25	0.2	1.15	150	25.4X12.7
TDC1700B20.pdf	680-2700	20±1.2	23	0.2	1.15	150	25.4X12.7	1.3
TDC1700B25.pdf	680-2700	25±1.0	23	0.2	1.18	150	25.4X12.7	1.3
TDC1700B30.pdf	680-2700	30±1.0	23	0.2	1.15	150	25.4X12.7	1.3
TDC1700B35.pdf	680-2700	35±1.0	22	0.2	1.15	150	25.4X12.7	1.3
TDC1750B10.pdf	500-3000	10.5±1.0	20	0.35	1.25	100	25.4X12.7	1.3
TDC1750B15.pdf	500-3000	15.5±1.5	20	0.35	1.22	100	25.4X12.7	1.3
TDC1900A10.pdf	1700-2100	10±1.0	22	0.1	1.2	200	14.22X8.89	2.0
TDC1900A20.pdf	1700-2100	20±1.0	25	0.1	1.2	200	14.22X8.89	2.0
TDC1900A30.pdf	1700-2100	30±2.0	25	0.1	1.2	200	14.22X8.89	2.0
TDC1900B25.pdf	800-3000	25±1.0	22	0.2	1.2	150	25.4X12.7	1.3
TDC1900E10.pdf	800-2650	12±2.5	20	0.15	1.25	100	14.22X5.08	2.0
TDC1900P10.pdf	1700-2000	10±0.5	18	0.2	1.15	25	6.35X5.08	2.0
TDC1950A20.pdf	1300-2600	20±1.5	20	0.1	1.2	200	14.22X8.89	2.0
TDC2100A10.pdf	1800-2400	10±1.0	23	0.1	1.2	200	14.22X8.89	2.0
TDC2100A20.pdf	1400-2800	20±2.0	25	0.13	1.15	200	14.22X8.89	2.0
TDC2100A30.pdf	1800-2400	30±1.0	25	0.1	1.2	200	14.22X8.89	2.0
TDC2100P10.pdf	2000-2300	10±0.25	19	0.2	1.1	25	6.35X5.0	2.0
TDC2200E20.pdf	1700-2800	20±1.0	20	0.10	1.2	100	14.22X5.08	2.0
TDC2500E10.pdf	1700-2800	10±1.0	20	0.15	1.2	100	14.22X5.08	2.0
TDC2500B25.pdf	1000-4000	25±1.2	20	0.20	1.2	150	25.4X12.7	1.3
TDC2500P10.pdf	2300-2700	10.5±0.3	18	0.20	1.15	25	6.35X5.08	2.0
TDC3000A20.pdf	2000-4000	20±1.0	20	0.2	1.25	200	14.22X8.89	2.0
TDC3500A20	1000-6000	20±1.0	20	0.2	1.2	150	14.22X8.89	1.3
TDC4000A20.pdf	2000-6000	21.0±1.5	18	0.55	1.4	200	14.22X8.89	2.0
TDC4250A20.pdf	2500-6000	20±1.0	20	0.45	1.4	200	14.22X8.89	2.0

Innovative patented technology and superior RF characteristics，Combine competitive costs，This product is suitable for a wide range of wireless communication systems and terminals，CoversWiMAX、WLAN、Wi-Fi、CATV、satellite communication、Radar、Base station and RF module, etc.，And widely used in antenna、Mobile Phone、Automotive electronics and consumer terminals。
